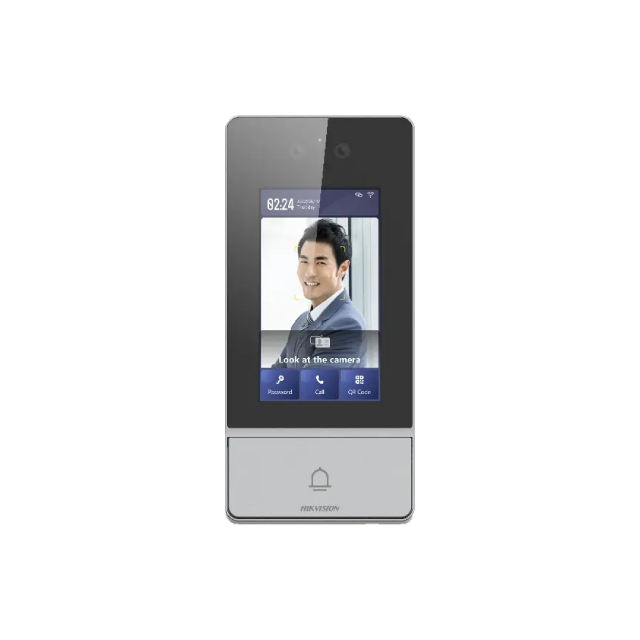

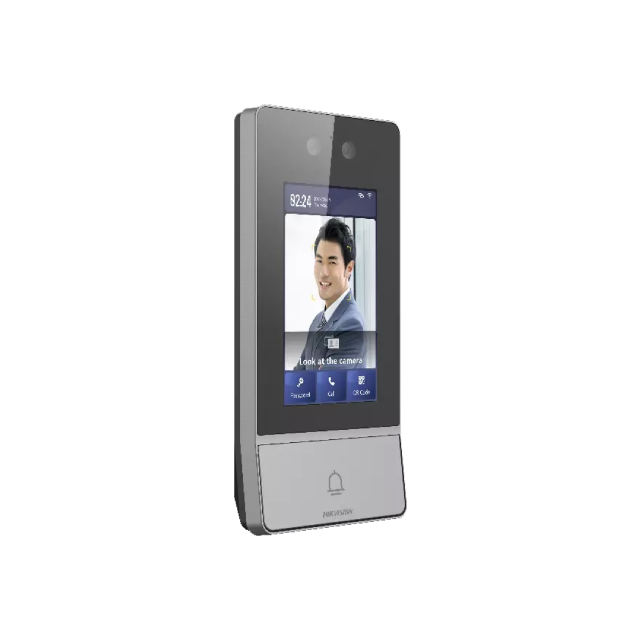

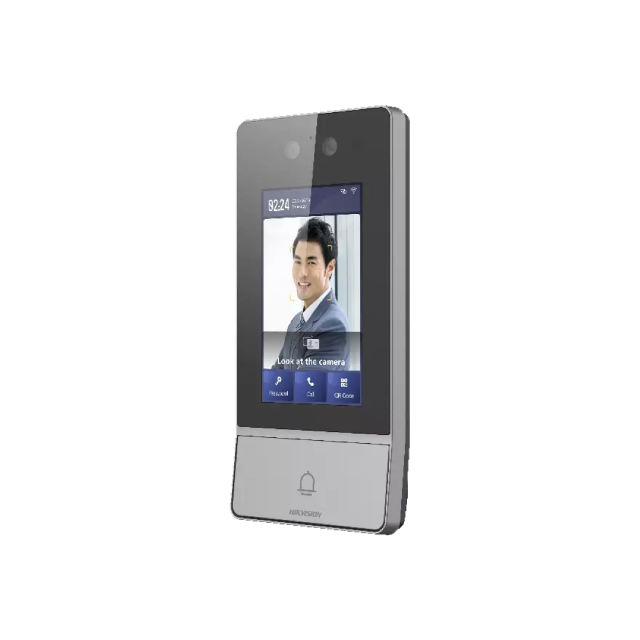

Metal Vandal-resistant Facial Recognition IP Villa Door Station
DS-KV9503-WBE1
The KV9 series IP facial recognition villa door station, with a 4.3-inch high resolution touch screen, brings you a more fluent and fit operation. It supports multiple authentication modes, such as face, QR code, card, and buttons, satisfying different environments and helping to use access permissions. The villa door station is powered by the standard PoE, and is no need to wire extra power supply, which is easy for installation and deployment. With high protective level, it is suitable for high-end villa, office, high-end apartment, etc.
Product Specifications
Operation system
|
Linux
|
ROM
|
4 GB
|
RAM
|
1 GB
|
Processor
|
Embedded high performance processor
|
Screen size
|
4.3-inch
|
Operation method
|
Capacitive touch screen
|
Capacitive touch screen
|
IPS
|
Resolution
|
800 × 480
|
Lens
|
2
|
Resolution
|
2 × 2 MP
|
FOV
|
Horizontal: 88°, Vertical: 44°
|
Wide dynamic range (WDR)
|
Support 120 dB
|
Audio input
|
1 built-in omnidirectional microphone
|
Audio output
|
1 built-in loudspeaker
|
User capacity
|
20000
|
Face capacity
|
10000
|
Card capacity
|
100000
|
Card reading frequency
|
13.56 MHz
|
Face recognition distance
|
0.3 to 2 m
|
Button
|
1 physical button
|
Installation
|
Surface mounting
|
Weight
|
Net weight: 0.405 kg
Gross weight: 0.752 kg
|
Protective level
|
IP65, IK08
|

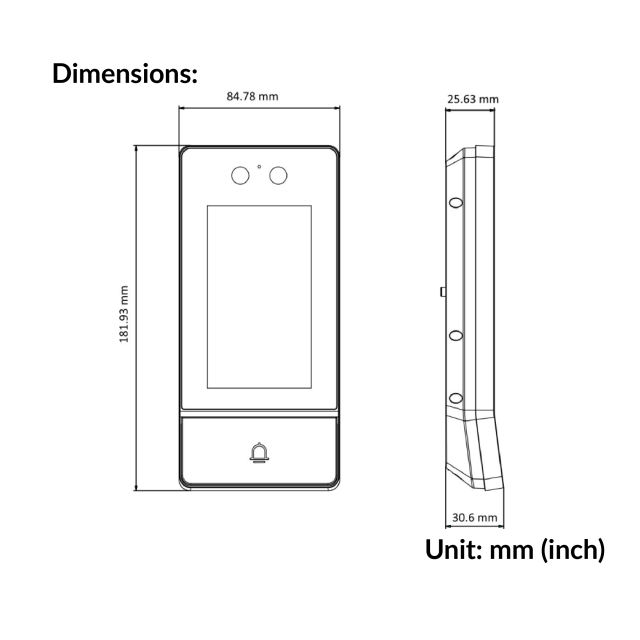

Dimension (W × H × D)
|
182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01")
|
Application environment
|
Outdoor
|
Datasheet
Download Datasheet
